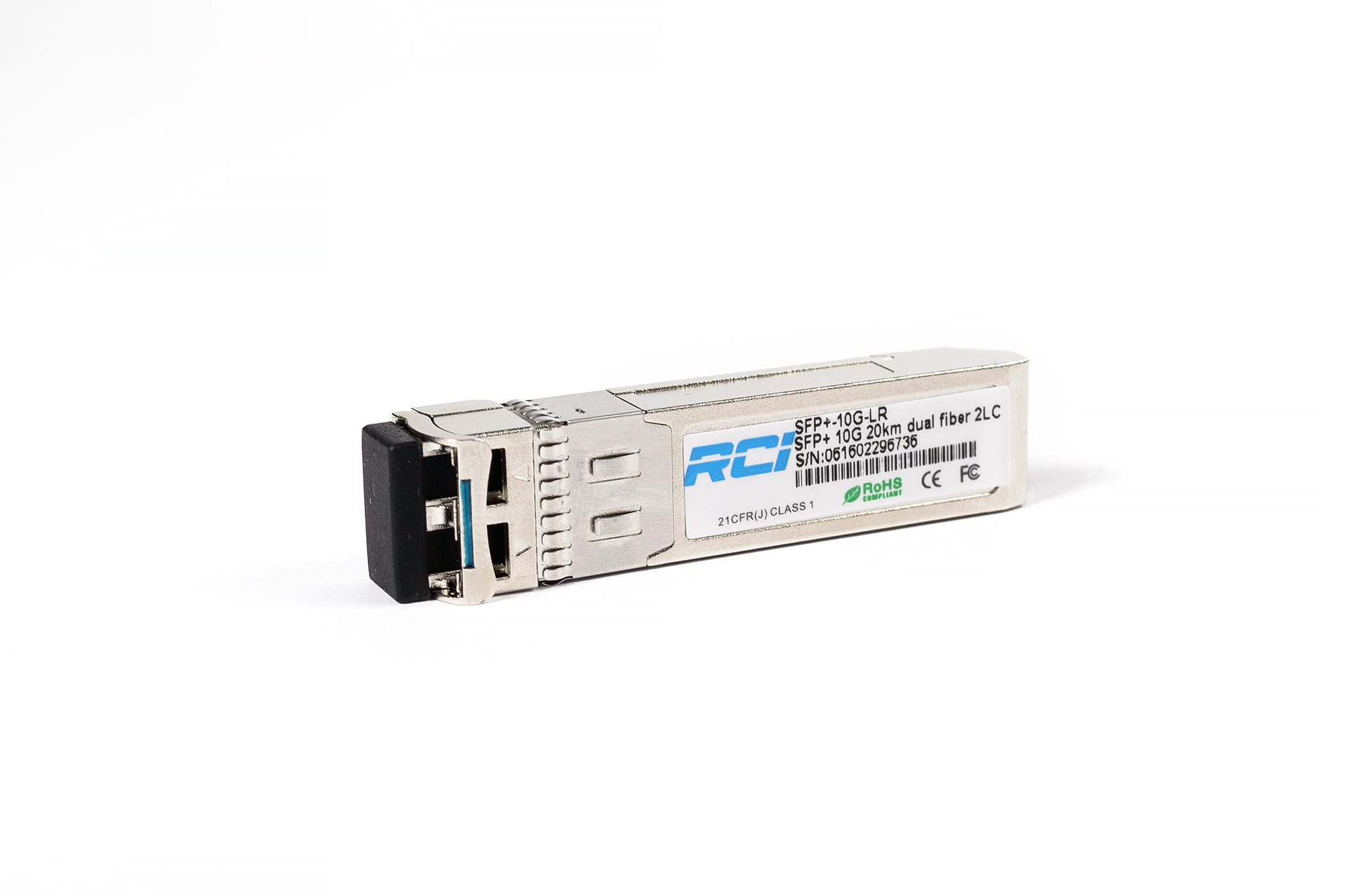

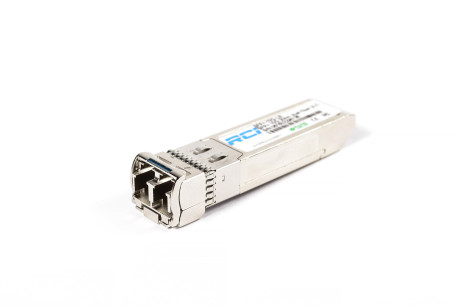

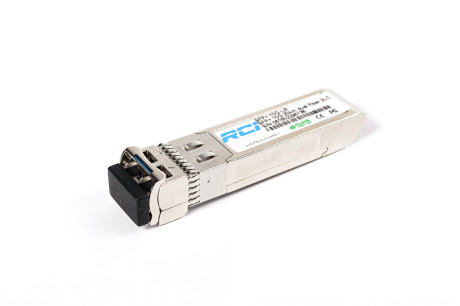

Module SFP-10GB-LR is the data interface for the two single-mode fiber at distances up to 20 km, is working at a nominal wavelength of 1310 nm using a standard IEEE 802.3ae 10GBASE-LR / LW. SFP + 20-pin connector allows you to hot-swap.

SKU: 23415. Categories: , .

Product Description

Field of use

10GBASE-LR at 10.31Gbps
10GBASE-LW at 9.95Gbps
other optical link

Main characteristics:

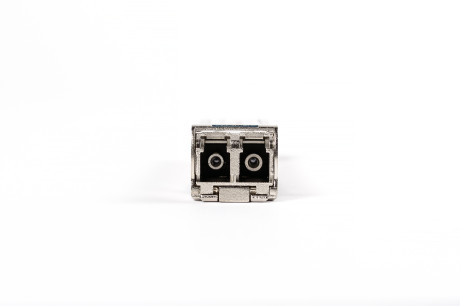

  • connector for optical cable: 2xLC
  • transmission distance up to 20 km (SMF)
  • hot-swappable
  • low power consumption
  • Supply voltage: +3.3 V
  • Operating Temperature: 0 ~ 70 ° C
  • RoHS 6/6 compliant

Digital diagnostic monitor

Corresponding SFP + Electrical MSA SFF-8431
Corresponding SFP + Mechanical MSA SFF-8432

The module meets the requirements of laser safety class 1 according to the international safety standard IEC-60825.

Сharacteristics:

The form factor SFP
Connector Type 2xLC
Max used fibers 2
Fiber Type SMF
Operating wavelength nm Tx: 1310 / Rx: 1310
data transmission distance of 20 km
The data rate Gbit / s 10
Garjachego replacement Yes
RoHS Compliant Yes
Power supply, V 3.3
Temperature range, ° C Operation 0 to +70
Product dimensions, WxHxD (mm) 13,9×10,32×57,4
Blister Packaging x 10 pcs.
Warranty 1 year
